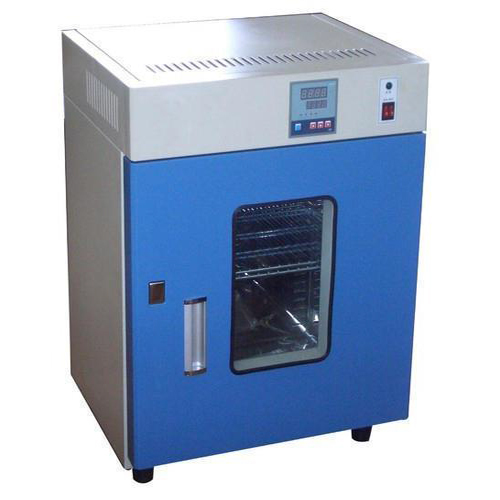

APS-106 Series Bod Incubator

Model No.

APS-106-4

APS-106-10

APS-106-12

APS-106-14

APS-106-16

APS-106-19

Capacity L

150

250

350

450

550

650

No .of Shelves

3

4

4

4

4

4

Inner dimension (mm)

550x550x550

Temperature range

5 Degree to 80 Degree C+/-0.1 Degree C

Accuracy

+/-1 Degree C (of Feed value )

Stability uniformity

+/-5 Degree C

Temperature control

Microprocessor (PID) With PT-100 Sensor

Display

LED display for set value (SV) and Process Value (PV)

Auto Tuning system

System is compatible with auto tuning system

Air Circulation

By force convection system

Relay

Solid state electronic relay with protective heat sink

Insulation Thickness

70 mm minimum for body and 80 mm for door

Operations

Nearly silent operation with ultralow vibration

Nominal voltage

220-230 Volts 50 Hz Single Phase

GMP models

 With inner chamber & outer body complete made of Stainless Steel

Lighting system

 interior Chamber illumination with the help of 2/4/6 Nos. fluorescent tubes

Cyclic Timer

24 hours Cyclic Timer for regulating illumination conditions ON/OFF Mode

Graphic LCD

LCD display with additional features.

Touch Screen Display

3.5 / 5 / 7 inch big color touch screen (PLC Based Control System).

Printing Facility

By Thermal Printer.

Dual Temperature Controller

 For day and Night Temperature Control cycle.

Door Open Alarm

Door Open Alarm on timed basis.

USB Data Logger

Through Pen drive.

Display Backup

 Battery backup in case of power failure for display & Alarms

Multipoint Data logger

for 8 Point temperature recording with sensor printer interface and software

Chart recorder

Seven days circular temperature chart recorder

GSM Module

GSM alert through SIM card
