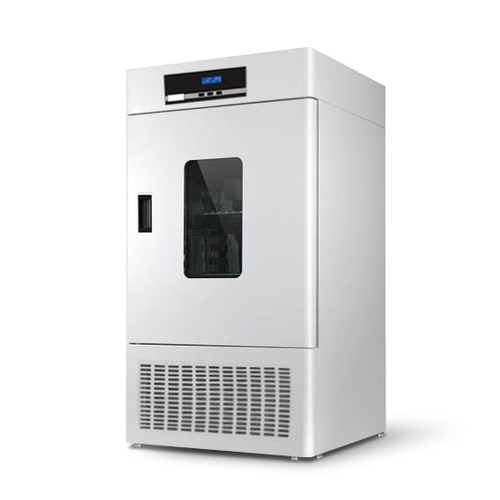

APS-107 Series Bacteriological Incubator

Model

APS-107-1

APS-107-2

APS-107-3

APS-107-4

APS-107-5

Inner dimension (mm)

355x355x355

455x455x455

455 x 455 x 605

605x605x605

605x910x455

Inches Conversion

14 x 14 x 14

18 x 18 x 18

18 x 18 x 24

24 x 24 x 24

24 x 36 x 18

Approx. Volume (Ltr)

43

90

105

215

240

No. of Shelves (adjustable)

2

2

2

2

3

Temperature

Range

Ambient +5 Degree C to 100 Degree C

Accuracy

+/-5 Degree C

Uniformity

+/-5 Degree C

Temp. Controller By

Microprocessor Based PID Digital Temperature Indicator cum Controller.

Display

LED Display for Set Value(SV) and Process Value (PV)

Relay

Solid state electronic relay with protective heat sink.

Auto Tuning System

System is compatible with auto tuning system

Air Circulation

By forced convection system

Insulation

By High density mineral wool insulation

Operations

Nearly silent operation with ultra-low vibration

Nominal voltage

220-230 Volts, 50 Hz Single Phase

GMP models

With inner chamber & outer body complete made of Stainless Steel

Graphic LCD

Jumbo LCD with Programmable function

Printing Facility

By Built in Mini Printer to record temperature.

Lighting system

By interior illumination with 3 fluorescent tubes of 60 cm. (20 Watts) placed vertically

Timer With reverse

0 - 24 hours for regulating hours of light and darkness including fitting at the top of incubator.

CO2 air mixtures

For incubation in CO2 air mixtures provided with nozzle f fitted at the side of Control panel for admitting CO2 /air mixture chamber

Carbon dioxide cylinder

Capacity: 10 Ltr with CO2 regulator and pipe fittings.

Humidity Control

30 % to 95% +/- 5 % RH with Digital Humidity Controller/Indicator

Data Logger

RS-485/RS232 communication ports, cables, window based software with inbuilt data  recording.

Regulated Voltage

By Voltage stabilizer
